Silicone Rubber Self-adhesive Daim kab xev

Self-fusing silicone roj hmab nws tus kheej-nplaum daim kab xev muaj cov yam ntxwv ntawm kub tsis kam, cuam tshuam tsis kam, zoo zog, siab breakdown voltage, waterproof, thiab lwm yam. Nws tensile zog, elongation thiab dielectric zog Performance index tshaj cov khoom zoo sib xws, thiab nws yog ib qho yooj yim mus use. tsim thiab txhim khu kev qha siv. Nws yog ib yam ntawm cov khoom siv rwb thaiv tsev tsim nyog rau H-chav motors thiab cov khoom siv hluav taws xob, los yog tiv thaiv ozone thiab tiv thaiv corona high-voltage noo noo-pov thawj daim kab xev. Nws tsis tsuas yog txhim kho tag nrho cov kev ua tau zoo ntawm lub cev muaj zog, tab sis kuj ua rau cov xov hlau tom qab kev sib khi ua tiav tag nrho.

1. Hluav taws xob rwb thaiv tsev kev ua tau zoo

(1) Volume resistivity: yam tsawg kawg 10 mus rau 13th hwj chim ohm / cm. (ASTM D257);

(2) Qhov hluav taws xob rwb thaiv tsev ib millimeter thickness ncav cuag 27KV, uas tuaj yeem muab cov rwb thaiv tsev zoo rau cov cua; siv lub thickness ntawm 0.5 hli tuaj yeem ua tiav qhov hluav taws xob rwb thaiv tsev ntawm 13.5KV, uas tuaj yeem ua tau raws li qhov yuav tsum tau muaj rwb thaiv tsev, lossis hu ua silicone high-voltage self-adhesive daim kab xev;

(3) Cov khoom tseem ceeb ntawm cov khoom no muaj silicon, txawm tias tom qab kub hnyiab, nws tsim silicon dioxide, uas tseem muaj cov khoom rwb thaiv tsev;

(4) Rau qee lub sijhawm tshwj xeeb, Arlon tseem muaj cov khoom siv hluav taws xob ua kom tsis muaj hluav taws xob los muab qhov chaw ua haujlwm zoo thiab muaj kev nyab xeeb;

(5) Nws muaj kev ua haujlwm zoo los tiv thaiv kab mob, tiv thaiv arc thiab tiv thaiv kev sib nqus khiav, muab qhov chaw ua haujlwm nyab xeeb.

2. Kub tsis kam thiab kev laus ua haujlwm

(1) Kub tiv thaiv ntau yam -50 degree -+260 degree ; Qhov siab tshaj plaws kub tsis kam 350 degree;

(2) Thermal stability 180 degree. Yog tias siv rau lub sijhawm ntev ntawm qhov ntsuas kub no, cov khoom tuaj yeem siv nyab xeeb rau ntau tshaj 10 xyoo, thiab muaj kev laus zoo heev;

(3) Nyob rau hauv 260 degree ib puag ncig, lub neej ua haujlwm ntev mus txog 2000 teev ntawm qhov kub no;

3. Sealing thiab noo noo-pov thawj kev ua haujlwm

(1) Cov khoom tseem ceeb ntawm tus kheej-fusing silicone roj hmab daim kab xev yog silicone roj hmab. Dej vapor yuav tsis nkag mus rau hauv daim kab xev silicone. Nws muaj kev ua haujlwm zoo ntawm cov dej noo-pov thawj thiab ua tiav cov rwb thaiv tsev zoo;

(2) Tom qab qhwv nrog daim kab xev, qhwv nws hauv 1/2 sib tshooj. Nws tuaj yeem ua tiav nws tus kheej fusion hauv 24 teev ntawm chav tsev kub. Tom qab qhwv, txhua txheej yog mus tas li fused rau hauv ib txheej, thiab cov txheej txheem yog irreversible. Nws haum nruj rau qhov qhwv. Vim nws txoj kev ua tau zoo, nws tuaj yeem haum nruj txawm tias nyob rau hauv qhov tsis xwm yeem nkhaus yam tsis muaj warping, ua tiav sealing muaj nuj nqi;

(3) Lub zog ntawm tus kheej yog qhov loj, uas tuaj yeem ncav cuag: 50g / mm; (Arlon SQA-TMS-047);

(4) Kev nqus dej 0.9% (46 teev hauv H20 ntawm 21 degree)

4. Cov khoom siv tshuaj

(1) Anti-oxidation thiab anti-ozone zog;

(2) Anti-ultraviolet thiab huab cua tsis zoo;

(3) Cov khoom siv tseem ceeb yog cov roj hmab silicone, uas muaj kev tiv thaiv zoo rau cov roj thiab lwm cov kuab tshuaj thiab corrosion kuj.

5. Mechanical zog

(1) Tus kheej-fusing silicone roj hmab daim kab xev muaj kev poob siab zoo heev thiab rwb thaiv tsev kub;

(2) Tus kheej-fusing silicone roj hmab daim kab xev muaj zoo txhua yam cuam tshuam tsis kam;

(3) Tus nqi ncav cuag 400%-500%;

6. Kev saib xyuas yooj yim

(1) Qhov saum npoo tsis yog nplaum, qhov saum npoo tsis nplaum rau qhov kov, thiab nws tsis ua raws li qhov sib cuag;

(2) Thaum yuav tsum muaj kev saib xyuas tom ntej, daim kab xev nws tus kheej tuaj yeem raug tshem tawm yooj yim tom qab cov hniav txiav nws;

7. Yooj yim rau siv

(1) Ib txheej ntawm cov ntaub qhwv tuaj yeem ua lub luag haujlwm zoo rwb thaiv tsev, txo kev ua haujlwm thiab nqi;

(2) Txhua daim kab xev raug tiv thaiv los ntawm ib txoj kab tshwj xeeb cais tawm. Thaum siv, tshem tawm cov hauv ob sab phlu thiab ncaj qha qhwv qhov chaw sib cuag.

8. Txoj kev siv

(1) Tus nqi ncav cuag 400%-500%. Thaum qhwv, ncab nws 200%;

(2) Nws raug nquahu kom sib tshooj ib nrab thaum ncab thiab qhwv, thiab lub voj voog kawg ntawm kev qhwv yuav sib tshooj lawm.

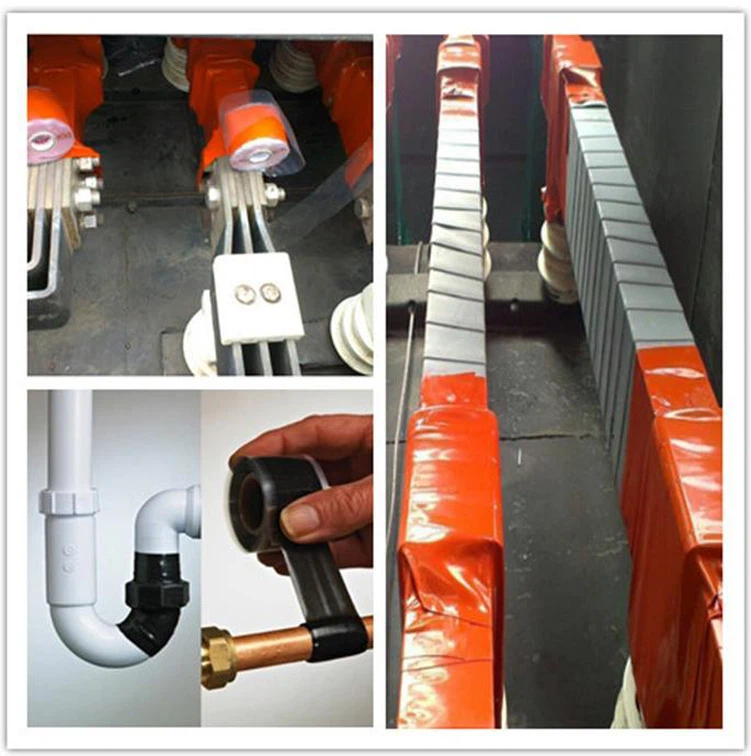

1. Indispensable strips, high voltage, keyboards, thiab lwm yam rau high voltage, cables, pob qij txha, sab nraum zoov wrapping ntawm lub hwj chim mov systems;

2. Cable accessories ntawm cov khoom loj hauv metallurgy thiab tshuaj industries;

3. Cable kev lag luam yuav tsum tau accessory wrapping strips;

4. Lub teeb rail tunnels, tsheb factories, steel mills, tsheb kev lag luam, shipyards, fais fab nroj tsuag, aerospace kev lag luam, warships thiab ships, tsheb ciav hlau thiab railways, underground engineering siv, waterproof strips;

5. Kev lag luam lub cev muaj zog thiab cov khoom siv hluav taws xob tsim kev lag luam transformer, thiab lwm yam, nrog rau ntau yam kev siv thiab qib siab wrapping tapes.

Kev ntim khoom tiav lossis ib nrab tiav tiav yog feem ntau txiav rau hauv cov ntawv yob lossis ib sab sib xyaw fluorine tso tawm cov yeeb yaj kiab, thiab tseem tuaj yeem ua tiav thiab txiav tuag raws li cov neeg siv khoom xav tau.
